How to efficiently insulate your outside walls using weatherboards?

Cedral Facades Insulation

Whether you are thinking about energy savings, your carbon footprint or the look of your home, insulating your exterior walls using weatherboards is effective in many ways. Cedral helps you to choose from the best available options.

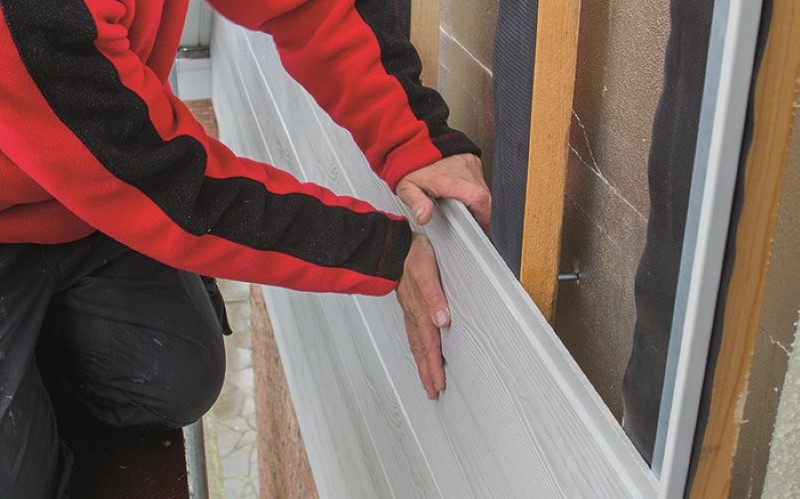

installing fiber-cement cladding

What is external wall insulation?

When talking about external wall insulation, we refer to adding insulation on the outside of the walls of your home. This goes hand in hand with a new facade cladding on the top of the insulation, with robust Cedral fibre-cement weatherboards for example. This insulation method is great for insulating solid walls where cavity insulation is not an option, or if you don’t want to insulate your walls from the inside.

For older buildings, adding an extra layer of insulation to your exterior walls is particularly useful to improve your home’s thermal performance. Thanks to the insulation, you will reduce your energy use and bill, but also the carbon footprint of your house. And, of course, you should not underestimate the possibilities of a new facade to improve your home’s look.

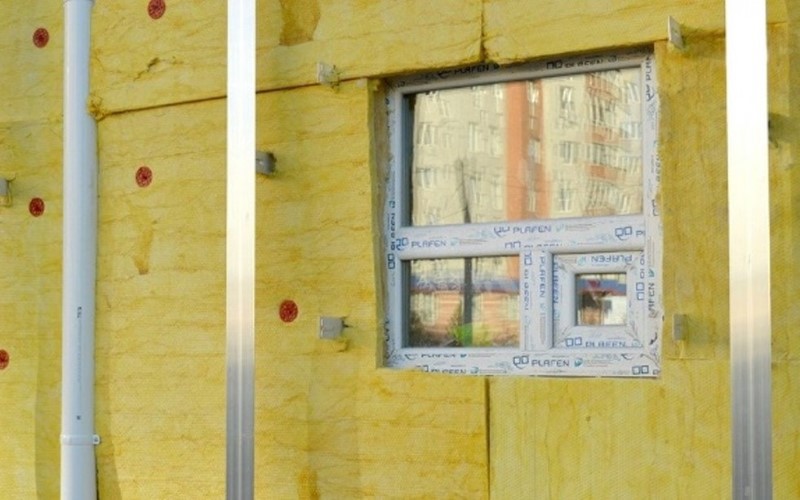

yellow exterior insulation

To insulate your home, there are a variety of options. Below is an overview of the main characteristics and advantages of the 5 most used insulation materials. But what they all have in common is that they need to be covered with new sidings. The sidings in themselves do not insulate much, but they protect the insulation material underneath, so that you can enjoy your investment for years on end.

Fiberglass

  • Batts or rolls of woven fine glass fibres
  • Non-flammable, does not absorb water
  • Exists in different densities and insulation qualities
  • Appropriate safety gear needed for installation to prevent health hazards
  • One of the cheaper options

Mineral wool

  • Several types: rock wool (made with basalt or diabase), slag wool (made from furnace slag)
  • Non-flammable
  • Contains up to 75% of recycled ingredients
  • Mid-range price

Cellulose

  • Made from compacted recycled paper, cardboard and similar
  • Flammable, but eco-friendly
  • Some people are allergic to it
  • More difficult to find experienced installers
  • Mid-range price

Natural fibres

  • Several materials available: hemp, wool, cotton, straw
  • Natural product, eco-friendly, minimal energy used to produce it
  • Needs to be treated to be flame retardant and insect/rodent repellent
  • Niche products, not many installers
  • Mid-range price

Polystyren

  • Thermoplastic foam: expanded (EPS) or extruded (XEPS or Styrofoam)
  • Excellent thermal and acoustic insulator
  • Smooth surface, can easily be cut in blocks, easy to install
  • Waterproof
  • Flammable, unless coated with Hexabromocyclododecane (HBCD)
  • Not ecological, HBCD can be a health hazard
  • One of the cheaper option

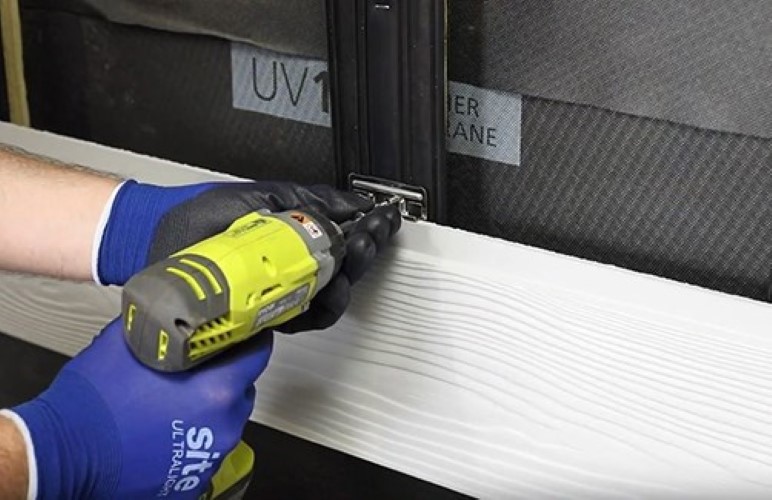

Cedral Click weatherboards mounting

Insulation tips for weatherboard facade

Based on the characteristics above, select the most appropriate insulation for your walls. Take the following into account:

  • Check the product’s R-value: the higher the R-value, the greater the Resistance (hence R-value) to heat transfer, the greater the insulating effect and the greater your energy savings.
  • Consider the climate zone you’re in to avoid condensation. Some insulation products come with facings that act as vapour barriers, keeping dampness out.
  • Consider the environmental impact of the insulation materials: do you want to use natural and recycled materials? Are there subsidies available for ecological insulation?
  • How important are other qualities for you such as soundproofing, fire-resistance, waterproofness, limited off-gassing to protect your indoor air quality etc.
  • For the insulation to work and have a long functional lifespan, the wall system needs to have an air and vapour barrier, for instance a ventilated facade made with fibre-cement weatherboards.

Read more about the benefits of exterior wall insulation combined with a slate facade.

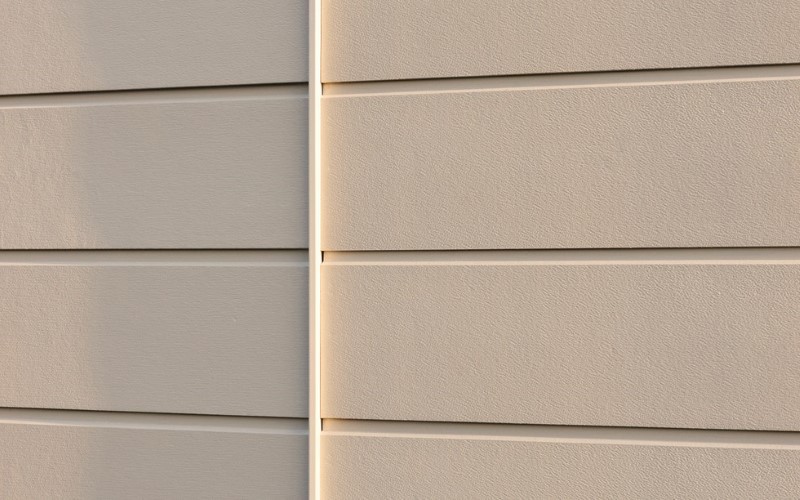

fibre-cement weatherboards

Cedral weatherboards for facades with exterior insulation

To benefit from your insulation for a long time, it needs to be protected by facade sidings. Cedral has a trendy range of weatherboards to cover your insulation and give your house a new stylish look. With Cedral’s robust fibre-cement sidings you completely re-energise the facade of your home.

Cedral can help you decide which type of wall insulation is the best option for you. Contact one of our installers for expert advice.

Order your free sample of Cedral’s weatherboards here!
